home >  Products > Terminals  >   Spade Connectors  >  PNF18-10LF-3K

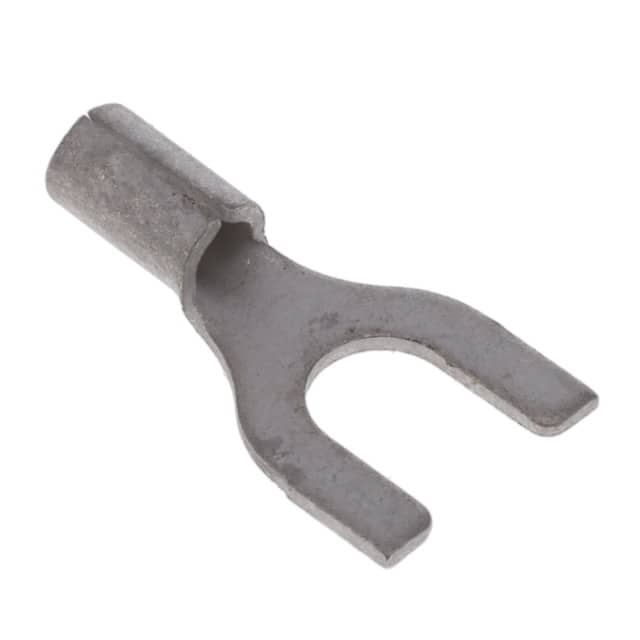

Image is for reference.Plz contact us to get the real picture

  • Part Number
  • PNF18-10LF-3K
  • Manufacturers

  • Panduit Corporation

  • Description
  • CONN SPADE TERM 18-22AWG #10 RED
  • Lead Free Status / RoHS Status
  • ROHS3 Compliant
  • Data sheet

  • PNF18-10LF-3K.pdf

Total :

$0.241
Submit a quote on large quantities or your Target Price.

Target Price(USD)

Qty

REMARK

PNF18-10LF-3K is available at our website. We only sale New&Original Part and offer 1 year warranty time. If you would like to know more about the products or apply more better price, please contact us click the Online Chat or send a quote to us.

In Stock

24700 pcs

Refrence Price
(In US Dollars)

  • 1 pcs

  • $ 0.241

Requote Quote

  • Product Parameter
  • Product Datasheets
  • Packaging
  • Shipping
  • Payment

  • Part Number

    PNF18-10LF-3K

  • Manufacturers

    Panduit Corporation

  • Description

    CONN SPADE TERM 18-22AWG #10 RED

  • Mfr

    Panduit Corp

  • Series

    Pan-Term®

  • Package

    Tape & Reel (TR)

  • Product Status

    Active

  • Terminal Type

    Spring, Snap

  • Stud/Tab Size

    10 Stud

  • Width - Outer Edges

    0.330" (8.38mm)

  • Length - Overall

    0.890" (22.61mm)

  • Mounting Type

    Free Hanging (In-Line)

  • Termination

    Crimp

  • Wire Gauge

    18-22 AWG

  • Insulation

    Insulated

  • Features

    Serrated Termination

  • Color

    Red

  • Contact Finish

    Tin

  • Contact Material

    Copper

  • Insulation Diameter

    0.090" ~ 0.145" (2.29mm ~ 3.68mm)

  • Material - Insulation

    Polyamide (PA), Nylon

  • Length - Ring Center to Termination

    -

  • Length - Termination

    -

  • Tongue Inside Opening

    0.190" (4.83mm)

  • Base Product Number

    PNF18
